Matrix Double Wire

Applications

Schools
Recreation
Commercial
Industrial Estates
Sports Grounds Parks

Features

Hard to climb
Difficult to cut through
High delay factor
Good visibility
Cost effective

Specification

Mesh:
Mesh size: 200mm x 50mm Width: 2506mm Height: 630mm to 2430mm and 3030mm in 400mm increments. Horizontal wires: Double 8mm (Option double 6mm) Vertical Wires: Single 6mm (Option single 5mm) Spike to top edge: 30mm Heights to 6000mm achievable as standard

Fixings:
Full length clamp strip: 40mm x 5mm Mountings: Steel retaining brackets Bolts: Anti-vandal M8 x 40mm Fixings: Threaded inserts set at 400mm max. (200mm on request) Anti-vibration: EPDC rubber washers available on re-quest

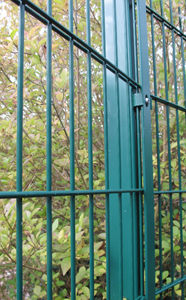

Post Section:
To 2400mm high: 60mm x 40mm To 3800mm high: 80mm x 40mm To 5000mm high: 100mm x 50mm To 6000mm high: 120mm x 60mm

Finish:
Hot dipped galvanised Galvanised and polyester powder coated Standard colours: RAL 6005 green, 9005 black,5010 blue, 3000 red, 9010 white Other colours: All other RAL colours available.

Download as PDF here

Robust, easy to install fencing systems offering an aesthetically pleasing low maintenance, solution to security and sports requirements. The combination of height, strength and appearance makes these ideal fences for a wide range of applications from commercial, industrial and educational to sport and recreation.
