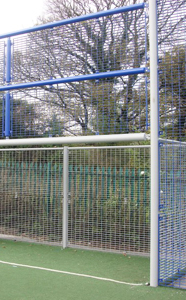

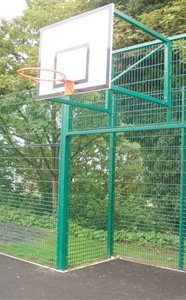

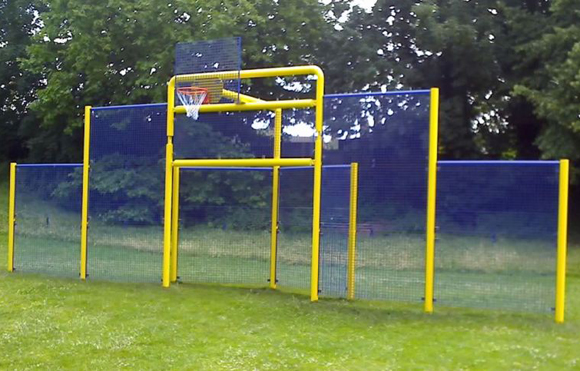

Goal Ends and Basketball set-ups
Applications
Sports Grounds
MUGAs
Features
Heavy option - grating
Budget option - rebound mesh
Specification Grating
Standard heights:
1000mm, 2000mm and 3000mm in any combination to goals and side fencing
Posts:
90mm or 115mm diameter tubular steel
Panelling:
950mm x 1830mm, manufactured from 25mm x 3mm bar crossed with 6mm verticals. Mesh pattern 41/50mm or 41/100mm.
Specification Rebound mesh
Standard heights:
1200mm, 2000mm and 3000mm in any combination to goals and side fencing
Posts:
80mm x 80mm RHS
Panels:
200mm x 50mm 868mm mesh with rebound element to lower 1.2m with additional horizontals at 66mm centres
Options
Goal mouths can be recessed and full clad or have "V" configuration panels at rear to allow escape
Escape Routes:
All goals can have escape routes as standard. Escape width 400mm - 1200mm.
Download as PDF here
|
Goal ends and Basketball set-ups can be a "stand alone" feature or be integral to the rest of the perimeter of the MUGA. An ideal solution where budget precludes a full pitch.
|
|
