Open Steel Grating MUGAs


Applications


MUGAs
Sports Pitches


Features


Designed to the requirements of BSI PAS 30,"outdoor recreational Multi-Sport equipment intended for permanent installation, including facilities for basketball, football and hockey," BS EN 15312:2007


Specification


Standard heights:
1000mm, 2000mm and 3000mm in any combination to goals and side fencing

Posts:
90mm or 115mm diameter tubular steel

Panelling:
950mm x 1830mm, manufactured from 25mm x 3mm bar crossed with 6mm verticals. Mesh pattern 41/50mm or 41/100mm.

Escape Routes:
All Goals have escape routes as standard. Escape width 400mm - 1200mm.

Steelwork:
After the manufacturing process all steelwork is hot dipped galvanised to BS EN IS0 1461.

Finish:
After Galvanisation all steelwork is “fettled” to remove any sharp edges prior to applying electrostatic polyester powder paint to BS-EN6496/7 1722 part 16.The systems are supplied using contemporary colours however special colouring can be specified by the client.

Accessories:
A full range of accessories including goals. We can also supply combination goal units, cricket wicket panels, entrance chicanes, gates and shelters.

Options:

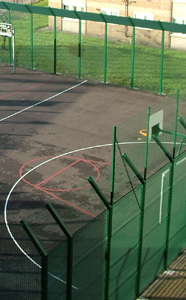

Cranked arms to increase ball retention within pitch


Download as PDF here

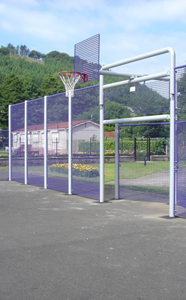

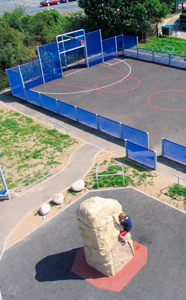

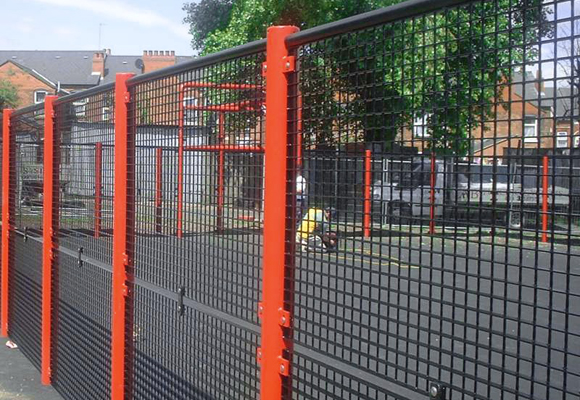

This MUGA system is made up of tough and durable mesh panels and tubular posts. Available in heights of 1,2 & 3 metres which can be used in any combination. All steelwork is hot dipped galvanised and polyester powder coated after manufacture. All fittings are graded stainless steel.
