Playspec


Applications


Playgrounds


Features


Meets requirements of BS EN 1179
ROSPA approved
Self Closing gates complement this system


Specification - Playspec


Standard heights:
1000 and 1200mm

Posts:
50 x 50 RHS set at 2800mm centres

Verticals:
12 mm or 16mm

Horizontal Rails:
Mild Steel flat, size dependent on bar infill

Fixings:
Domed headed bolts, permacone security fixings and special angle cleats which allow the panels to be stepped 0 - 16mm and 56 - 72mm on site.

Finish:
Hot Dip Galvanised to BS EN ISO 1461 or Galvanised and Polyester Powder Coated.

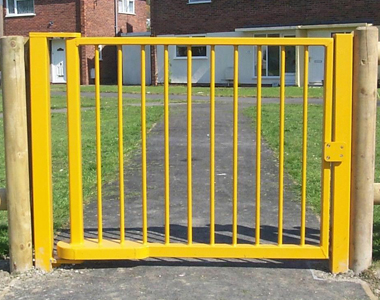

Specification - Prosafe Gates


Standard heights:
1000mm and 1200mm.

Length:
Actual gate 1100mm.
Between posts 1205mm.
Integral anti-finger stop mechanism.
Slamplate with rubber buffer.
Dual action concealed hydraulic unit.
Posts nutserted to take Playspec. fencing.

Finish:
Hot Dip Galvanised to BS EN ISO 1461 or Galvanised and Polyester Powder Coated.
Standard colours are Yellow RAL 1021 or Red RAL 3000.


Download as PDF here

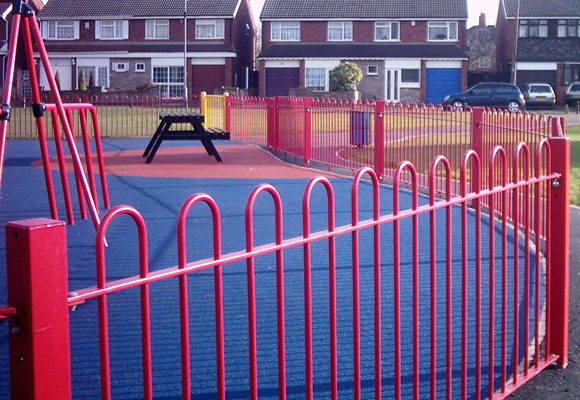

Playspec playground fencing together with the Prosafe self closing gates with dual action anti-slam hydraulic gate closers provides a safe fence for children to play within.
