Matrix Rebound

Applications

Sports Grounds
MUGAs

Features

Hard to climb
Difficult to cut through
Excellent rebound capability
Good visibility
Cost effective

Specification

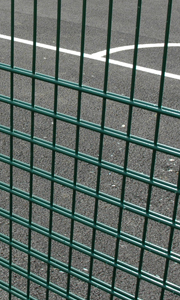

Mesh:
Mesh size: 200mm x 50mm Width: 2506mm
Height: 630mm to 2430mm and 3030mm in 200mm increments
Horizontal wires: Double 8mm Vertical Wires: Single 6mm
Spike to top edge: 30mm Heights up to 6000mm achievable as standard

Rebound Element:
The lower 1.2m of the base panel has two sets of additional double wires welded into each vertical at 66.6mm centres

Fixings:
Full length clamp strip: 40mm x 5mm Mountings: Steel retaining brackets Bolts: Anti-vandal pin hex M8 x 40mm Fixings: Threaded inserts set at 400mm max. (200mm on request) Anti-vibration: EPDC rubber washers available on re-quest

Post Section:
To 2400mm high: 60mm x 40mm To 3800mm high: 80mm x 40mm To 5000mm high: 100mm x 50mm To 6000mm high: 120mm x 60mm

Finish:
Galvanised and polyester powder coated Standard colours: RAL 6005 green, 9005 black, 5010 blue, 3000 red, 9010 white Other colours: All other RAL colours available.

Download as PDF here

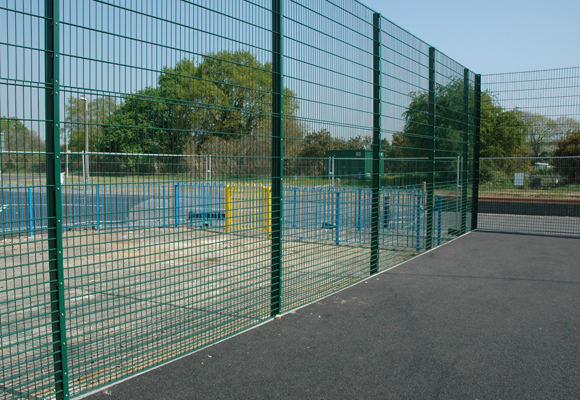

Robust, easy to install fencing systems offering an aesthetically pleasing low maintenance, solution to sports requirements. The combination of height, strength and appearance makes this an ideal long lasting solution to the intense requirements of any MUGA or other sports areas.
