Stripemesh


Applications


Schools
Recreation
Commercial
Industrial Estates
Parks


Features


Hard to climb
Difficult to cut through
High delay factor
Good visibility
Cost effective


Specification

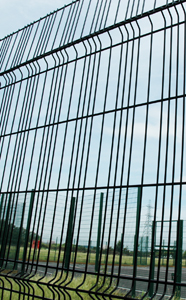

Mesh:
The panels comprise single 5mm wires and single 5mm vertical wires. The horizontal wires are generally at 200mm centres with occasional 50mm spacing and the vertical wires are set at variable centres in a repeated series. The standard panel is 3000mm wide and is available in heights of 1800mm, 2000mm and 2400mm as standard with an option for higher panels.

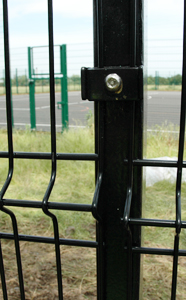

Fixings:
Individual fixing brackets. Bolts: Anti-vandal M8 x 40mm Fixings: Bolts set at 400mm max.

Post Section:
Constructed in 60mm x 60mm x 2mm hollow section steel. Posts are set at 3000mm centres.

Finish:
Galvanised and polyester powder coated Standard colours: RAL 6005 green, 9005 black, 5010 blue, 3000 red, 9010 white Other colours: All other RAL colours available.


Download as PDF here

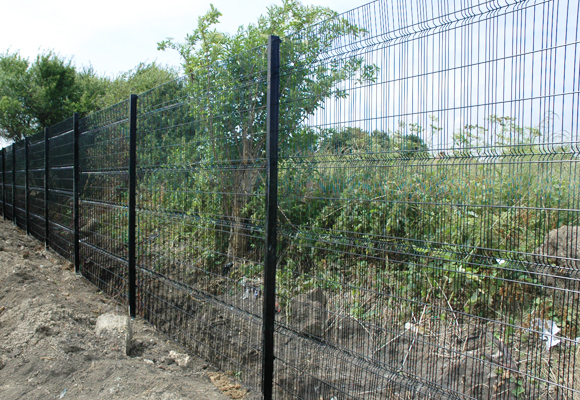

Robust, easy to install fencing systems offering an aesthetically pleasing low maintenance, solution to security requirements. The combination of height, strength and appearance makes these ideal fences for a wide range of applications from commercial, industrial, and educational.
