Matrix Budget Mesh
Applications
Schools
Commercial
Industrial Estates
Parks
Features
Hard to climb
Difficult to cut through
High delay factor
Good visibility
Cost effective
Specification
Mesh:
Double wire 868 or 656
200mm x 50mm x 2506mm
Height: 1830mm, 2030mm , 2430mm and 3030mm(lower heights available)
Horizontal wires: Double 8mm or 6mm
Vertical Wires: Single 6mm or 5mm
Spike to top edge: 30mm
Crimped wire 2.5m or 3m wide
200mm x 50mm
Height: 1830mm, 2030mm and 2430mm nominal(lower heights available)
Horizontal wires: Single 5mm
Vertical Wires: Single 5mm
Spike to top edge: 30mm
Fixings:
30mm clamp strip and reating brackets for double wire or clips for crimped and double wire

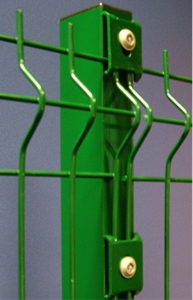

Post Section:
60 x 40 x 2mm
80 x 40 x 2.5mm (3m double wire only)
Finish:
Pre-galvanised and polyester powder coated
Standard colours: RAL 6005 green, 9005 black
All other RAL colours available.
